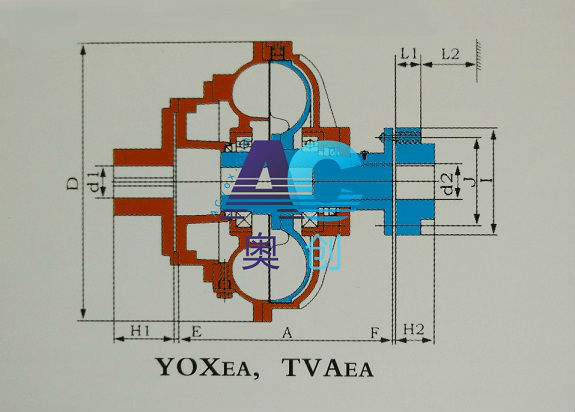

This type of fluid coupling is more easy to align, install and dismount.
| 型號(hào) Type No. |
D |
d1max | d2max | A | E | F | J | I | L1 | L2min | 充油量Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) | 最高轉(zhuǎn)速M(fèi)ax.speed(r/min) |
過載系數(shù) Overload ratio |
|
| Max. | Min. | ||||||||||||||
| TVAEA562 | Ø634 | Ø90 Ø100 |
Ø80 Ø100 |
438 | 5 | 8 | Ø95 Ø215 |
Ø260 Ø285 |
55 | 80 | 30 | 15 | 240 | 1000 1500 |
2～2.5 |
| YOXEA600 | Ø695 | Ø110 | Ø90 Ø100 |
499 | 6 | 10 | Ø230 Ø245 |
Ø310 Ø330 |
70 | 95 | 36 | 18 | 245 | 1000 1500 |
2～2.5 |
| TVAEA650 | Ø740 | Ø110 | Ø90 | 501 | 5 | 6 | Ø230 | Ø310 | 70 | 95 | 46 | 23 | 260 | 1500 | 2～2.5 |
| TVAEA750 | Ø842 | Ø120 | Ø105 | 575 | 6 | 6 | Ø265 | Ø360 | 90 | 110 | 68 | 34 | 400 | 1500 | 2～2.5 |
