1. This type of fluid coupling is compound liquid-off.

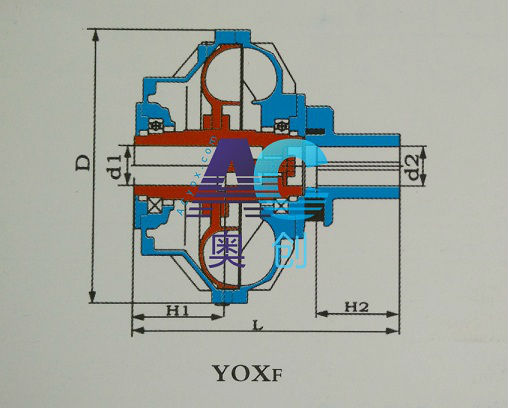

2. The screw inside shaft in figure is optional.
| 型號(hào)Type No. |
Lmin |
D | 輸入端Input side | 輸出端Output side | 充油量Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) | 最高轉(zhuǎn)速M(fèi)ax.speed(r/min) |
過載系數(shù) Overload ratio |
|||
| d1max | H1max | d2max | H2max | max. | min. | ||||||
| YOXF360 | 445 | Ø420 | Ø60 | 140 | Ø60 | 140 | 7.1 | 3.55 | 49 | 1500 | 0.8～2.0 |
| YOXF400 | 470 | Ø480 | Ø70 | 140 | Ø70 | 140 | 9.3 | 4.65 | 65 | 1500 | 0.8～2.0 |
| YOXF450 | 500 | Ø520 | Ø75 | 140 | Ø70 | 140 | 13 | 6.5 | 70 | 1500 | 0.8～2.0 |
| YOXF500 | 580 | Ø580 | Ø90 | 170 | Ø90 | 170 | 19.2 | 9.6 | 105 | 1500 | 0.8～2.0 |
| YOXF560 | 650 | Ø635 | Ø100 | 210 | Ø110 | 210 | 27 | 13.5 | 140 | 1500 | 0.8～2.0 |
| YOXF600 | 670 | Ø686 | Ø110 | 210 | Ø120 | 210 | 36 | 18 | 200 | 1500 | 0.8～2.0 |
| YOXF650 | 680 | Ø758 | Ø125 | 210 | Ø130 | 210 | 46 | 23 | 239 | 1500 | 0.8～2.0 |
| YOXF750 | 830 | Ø840 | Ø140 | 250 | Ø150 | 250 | 68 | 34 | 332 | 1500 | 0.8～2.0 |
