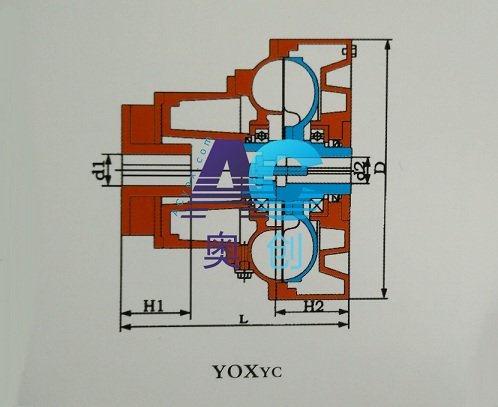

1. This type of fluid coupling is with further enlarged delay chamber and additional side chamber
in the coupling shell. The design enables starting torque to be further reduced and starting time
to be further prolonged. It was designed especially for belt conveyors to reduce starting torque,
prolong starting time and have longer life of the belt.
2. The screw inside shaft in figure is optional.
| 型號 Type No. |
Lmin |
D | 輸入端 Input side | 輸出端Output side | 充油量 Oil filling(L) | 重量(不包括油)Weight w/o oil(kg) | 最高轉速Max.speed(r/min) |
過載系數(shù) Overload ratio |
|||
| d1max | H1max | d2max | H2max | max. | min. | ||||||
| YOXYC360 | 360 | Ø420 | Ø55 | 110 | Ø55 | 110 | 8.8 | 4.4 | 55 | 1500 | 1.1～2.35 |
| YOXYC400 | 390 | Ø480 | Ø60 | 140 | Ø60 | 150 | 13.5 | 6.7 | 73 | 1500 | 1.1～2.35 |
| YOXYC450 | 445 | Ø530 | Ø75 | 140 | Ø70 | 140 | 19.5 | 9.7 | 80 | 1500 | 1.1～2.35 |
| YOXYC500 | 510 | Ø590 | Ø85 | 170 | Ø85 | 145 | 26.8 | 13.4 | 123 | 1500 | 1.1～2.35 |
| YOXYC562 | 530 | Ø634 | Ø90 | 170 | Ø100 | 180 | 34.2 | 17.1 | 161 | 1500 | 1.1～2.35 |
| YOXYC600 | 575 | Ø695 | Ø90 | 170 | Ø100 | 180 | 43.6 | 21.8 | 183 | 1500 | 1.1～2.35 |
| YOXYC650 | 650 | Ø740 | Ø125 | 225 | Ø130 | 200 | 62.4 | 31.2 | 239 | 1500 | 1.1～2.35 |
| YOXYC750 | 680 | Ø842 | Ø140 | 245 | Ø150 | 240 | 88.4 | 44.2 | 363 | 1500 | 1.1～2.35 |
| YOXYC866 | 820 | Ø978 | Ø160 | 280 | Ø160 | 265 | 145.6 | 72.8 | 520 | 1500 | 1.1～2.35 |
| YOXYC1000 | 845 | Ø1120 | Ø160 | 210 | Ø160 | 280 | 192.4 | 96.2 | 564 | 1000 | 1.1～2.35 |
| YOXYC1150 | 960 | Ø1295 | Ø180 | 220 | Ø180 | 300 | 264 | 132 | 980 | 750 | 1.1～2.35 |
| YOXYC1320 | 1075 | Ø1485 | Ø200 | 240 | Ø200 | 350 | 388 | 194 | 1495 | 750 | 1.1～2.35 |
